Joint Bearings

1.Identification code

The joint bearing code is composed of the basic code, supplementary code and clearance group code.

1.1 Type code

Type code

Joint bearing type

GE

Radial joint bearing

GAC

Angular contact joint bearing

GX

Thrust joint bearing

1.2 Size series code

Size series code

Size series

C

Large and extra large radial joint bearing extra light series

E

Normal series (omitted from the code name)

F

F series

G

G series

H

Radial joint bearing H series

K

K series

EW

W series (wide inner ring)

EM

M series (wide inner ring)

1.3 Inner diameter code

The inner diameter code of the metric joint bearing is directly expressed by the inner diameter in millimeters.

1.4 Structure type code, material code

Code

Joint bearing structure and material characteristics

E

Single seam outer ring

H

Double half outer ring

N

Outer ring with stop groove

S

The ring has lubrication grooves and lubrication holes

T

The sliding surface of the outer ring is made of PTFE fabric

X

Double-slit outer ring (split outer ring)

-RS

Joint bearing with sealing ring on one side

-Z

Joint bearing with dust cover on one side

-2RS

Joint bearing with sealing ring on both sides

-2Z

Joint bearing with dust cover on both sides

2. Product classification (3 categories, 19 basic graphics)

Radial spherical plain bearing

Angular contact spherical plain bearing

Thrust joint bearing

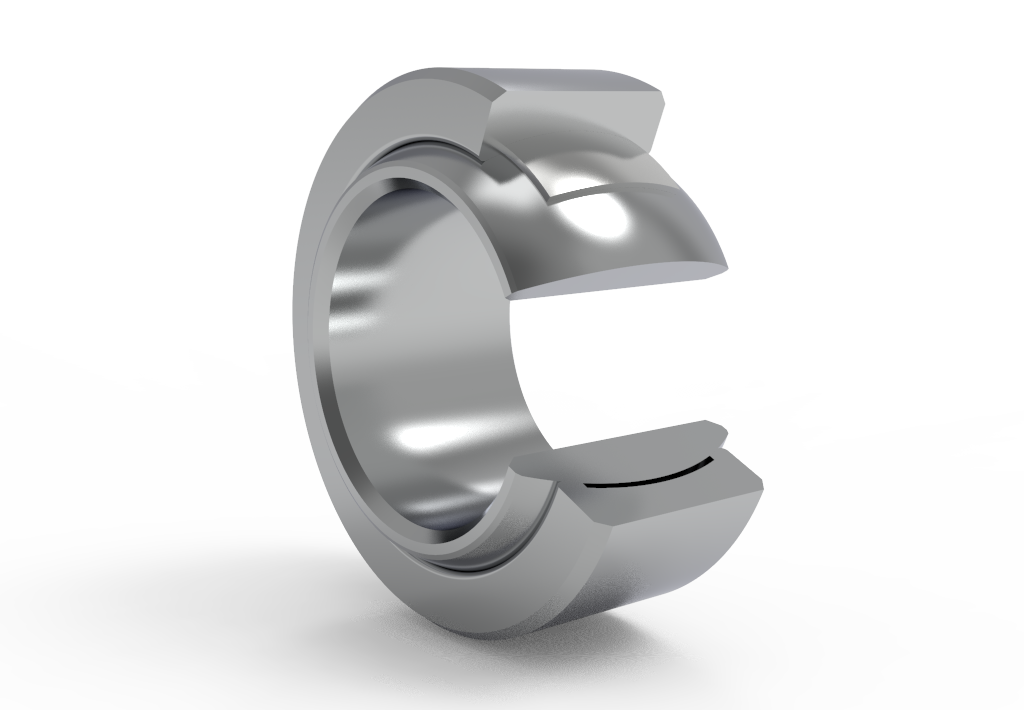

2.1 Radial joint bearing

The nominal contact angle is 0°, which is mainly used to bear radial load.

2.2 Angular contact joint bearing

2.2.1 Angular contact radial spherical plain bearings-radial spherical plain bearings with a nominal contact angle greater than 0° but less than or equal to 30°. It is suitable for the bearing combined load of radial load and axial load at the same time.

2.2.2 Angular contact thrust joint bearings-thrust joint bearings with a nominal contact angle greater than 30° but less than 90°. It is suitable for bearing axial load, but can also bear combined load (in this case, the radial load value shall not be greater than 0.5 times the axial load value).

2.3 Thrust joint bearing

The nominal contact angle is equal to 90°, which is suitable for bearing pure axial loads.


Product category
The Joint Bearings currently produced by ZWZ can be roughly divided into the following structural types:
  • Joint Bearings (1)
  • Joint Bearings (2)
  • Joint Bearings (3)
  • Joint Bearings (4)
  • Joint Bearings (5)
  • Joint Bearings (6)
· Joint Bearings (1)
· Joint Bearings (2)
· Joint Bearings (3)
· Joint Bearings (4)
· Joint Bearings (5)
· Joint Bearings (6)
Joint Bearings
ID d
mm
——
mm
OD D
mm
——
mm
Bearing width B
mm
——
mm
OR Width C
mm
——
mm
Joint Bearings (1) 109
Joint Bearings (2) 37
Joint Bearings (3) 21
Joint Bearings (4) 90
Joint Bearings (5) 14
Joint Bearings (6) 17
3D graphics
2D graphics
Basic dimensions mm Adjustment angle Basic load ratings kN Bearing part number Relative dimensions mm Mass kg
dDBCαCCoBearing part numberBearing part numberdkbb1Mr1minr2mindamindamaxDaminDamaxramaxrbmaxMass
3004301651207380019000GE300ES-2RS37515.515.571.11.1314336.5371418.511
2804001551206355018000GE280ES-2RS35015.515.571.11.1294313.5344.5388.511
2603701501107305015300GE260ES-2RS32515.515.571.11.1273288321.535911
2403401401008255012700GE240ES-2RS30015.515.571.11.1252.5265298329.511
2203201351008232011600GE220ES-2RS27515.515.571.11.1232.5239.5271309.511
2002901301007212010600GE200ES-2RS25015.515.571.11.1212.5213.5244.5279.511
2002901301007212010600GE200ES25015.515.571.11.1212.5213.5237.5279.511
18026010580615307650GE180ES-2RS22513.513.561.11.1191199224.5250.511
18026010580615307650GE180ES22513.513.561.11.1191199214250.511
16023010580813706800GE160ES-2RS20013.513.5611169.517019722211
16023010580813706800GE160ES20013.513.5611169.517019022211
1402109070710805400GE140ES-2RS18013.513.5611149155.5180202.511
1402109070710805400GE140ES18013.513.5611149155.5171202.511
120210115701610805400GEH120ES-2RS18013.513.5611130138.5180202.511
120180857069504750GE120ES-2RS16013.513.5611129.5135.5157.517211
120180857069504750GE120ES16013.513.5611129.5135.515217211
11018010070129504750GEH110ES-2RS16013.513.5611119.5124.5157.517211
110160705566553250GE110ES-2RS14011.511.5511118121141.515311
110160705566553250GE110ES14011.511.551111812113315311
1001608555136553250GEH100ES-2RS14011.511.5511108.1111.2141.5153.311
100150705566103050GE100ES-2RS13011.311.3511107.8109.5131143.211
100150705576103050GE100ES13011.311.3511107.8109.5123.5143.211
90130605054902450GE90ET-2RS
901508555156103050GEH90ES-2RS13011.311.351198.298.4131143.211
90130605054902450GE90ES-2RS1159.59.551197.498.1112.9123.511
90130605054902450GE90ES1159.59.551197.498.1109.3123.511
801307550144902450GEH80ES-2RS1159.59.551187.287.2112.9123.511
80120554554002000GE80ES-2RS1057.77.741187.189.4104.4113.811
80120554564002000GE80ES1057.77.741187.189.499.7113.811
70105494063151560GE70ET-2RS
