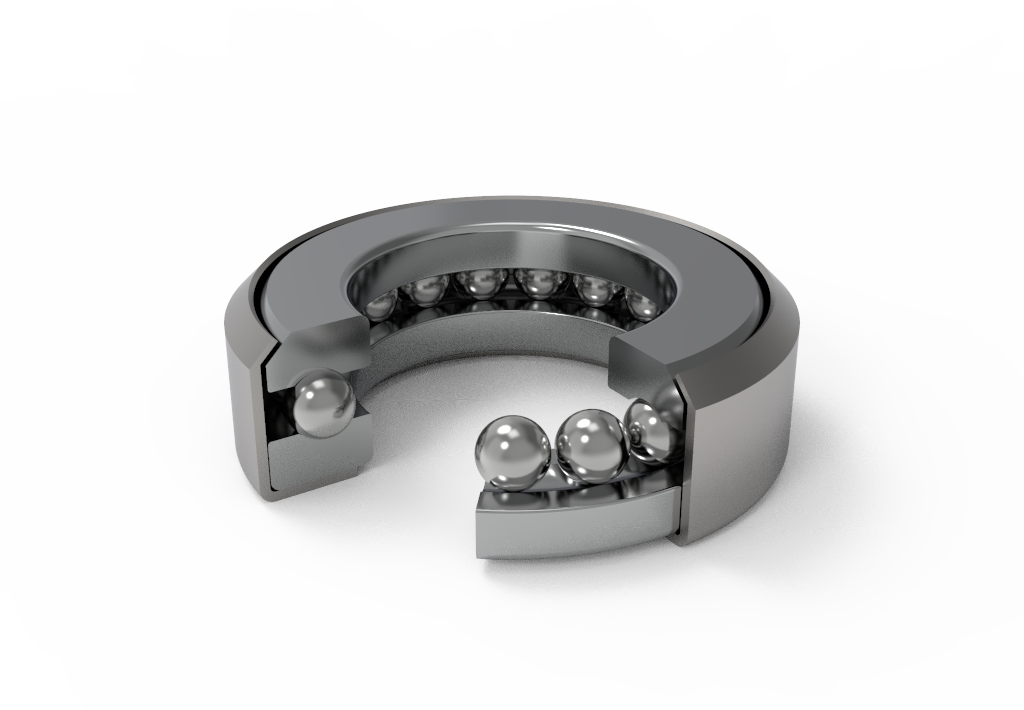

Thrust ball bearing with cover, as the name suggests, is to add a metal outer cover outside the general unidirectional thrust ball bearing to cover the outer diameter surface of the bearing's housing washer, which plays a role of isolation and protection. The inside of the bearing is lubricated with grease, which can be used for a long time without maintenance. In addition, our company also produces a special thrust ball bearing with protective cover for automobile suspension, which is maintenance-free for life.
Basic dimensions mm | Basic load ratings kN | Limit Rotational Speed rmin | Bearing part number | Other dimensions mm | Mass kg | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
d | D | T | rmin | r1min | Cr | Cor | Grease lubrication | Oil lubrication | Bearing part number | d1 | D1 | Mass |
25.1 | 49 | 16 | 0.6 | 0.6 | 20.8 | 32.6 | 3300 | 4700 | 51205ZSV | 25.3 | 0.13 | |
30 | 53 | 15.8 | 0.6 | 0.6 | 21.6 | 37.6 | 3200 | 4600 | 51206ZSV | 30.4 | 0.139 | |
32.1 | 60.5 | 18 | 0.6 | 0.6 | 31.8 | 51.4 | 2800 | 4000 | 517/32-2ZSV | 58 | 32.5 | 0.211 |
35.1 | 65.9 | 19.7 | 0.6 | 0.6 | 42.5 | 67.2 | 2600 | 3700 | 51207-2ZSV | 64 | 35.1 | 0.206 |
40 | 74.3 | 20.5 | 0.6 | 2400 | 3400 | 688908K | 71 | 40.5 | 0.354 | |||
50 | 81 | 23 | 1 | 56.9 | 99.8 | 2100 | 3100 | 51710ZSV/YA | 50.2 | 0.415 | ||
52.388 | 84.5 | 20.7 | 1.1 | 1.1 | 21.9 | 39.4 | 2200 | 3200 | 517/52X4ZS | 83.5 | 52.8 | 0.366 |
52.388 | 84.5 | 20.7 | 1.1 | 21.9 | 39.4 | 2200 | 3200 | 517/52X4ZS/YA8 | 83.5 | 52.8 | 0.372 | |
52.388 | 84.5 | 20.7 | 1.1 | 21.9 | 39.4 | 2200 | 3200 | 517/52X4ZSD | 83.5 | 52.6 | 0.372 | |
54.23 | 90.2 | 20.2 | 1 | 1.5 | 30.2 | 66.2 | 2200 | 3100 | 517/54X4ZSTN1 | 88.9 | 54.8 | 0.402 |
59.8 | 102 | 36.5 | 14.5 | 46.5 | 1500 | 2100 | 5617/33ZS | 70 | 80 | 0.19 | ||
68.9 | 109 | 44 | 11 | 14.5 | 46.5 | 1300 | 1900 | 5617/39ZS | 62.4 | 75.9 | 0.323 | |
60.5 | 103.5 | 30.1 | 6 | 15 | 49.1 | 1600 | 2400 | 5617/60.5ZS | 64 | 68.8 | ||
68.9 | 114.6 | 33.7 | 4 | 12 | 36.4 | 1500 | 2100 | 5617/68.9ZS | 71.5 | 77.5 | 0.161 | |
69.84 | 114.3 | 22.1 | 1 | 1.5 | 41.3 | 96.2 | 1800 | 2600 | 517/69X4ZSTN1 | 112.8 | 70.6 | 0.642 |
80 | 145 | 45 | 1.5 | 1.5 | 191 | 335.6 | 1100 | 1600 | 51316ZSV | 82 | 2.83 | |
86.6 | 137 | 12 | 1 | 3.5 | 20.7 | 89.3 | 2300 | 3300 | 517/86.6ZSV/RT6 | 86.6 | 137 | 0.151 |
86.6 | 139.1 | 31.5 | 1 | 3.5 | 20.7 | 89.3 | 1400 | 2000 | 517/86.6ZSV/RT6ZC | 90 | 94 | 0.229 |
